ABOUT THIS PROJECT
This project was a live project I did in India. The task was to design a Fire-Fighting robot console and styling of the robot.
BRIEF SPECIFICATION
The robot machine was already designed by the engineering team in India. The challenge was to design a Remote console for the Fire-man who can easily operate the console and handle easily during a fire emergency.
Task timeline:
ROBOT Styling - 3-5 Weeks
Remote console - 6 weeks including final prototype
FINAL 3D MODEL

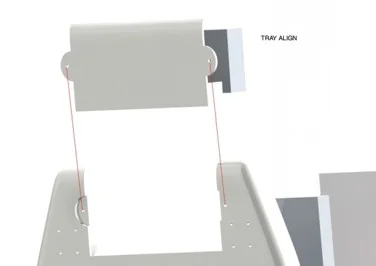

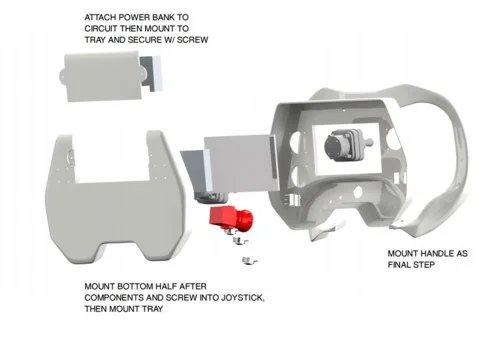

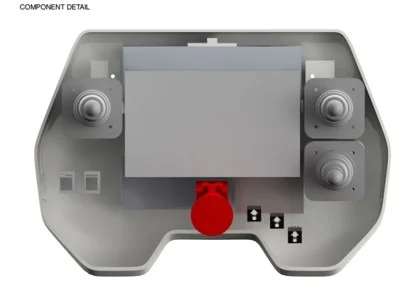

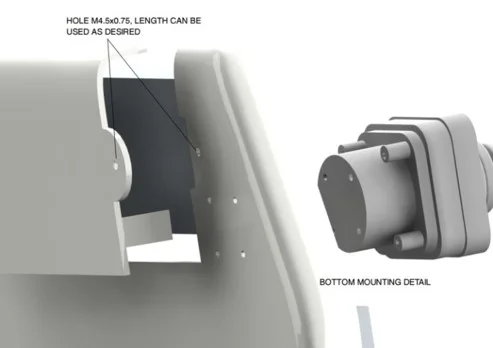

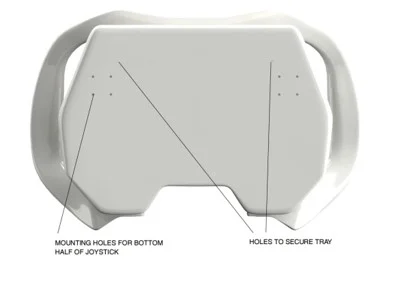

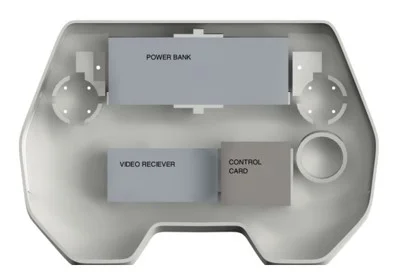

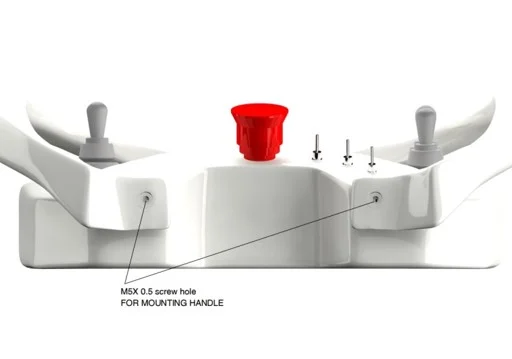

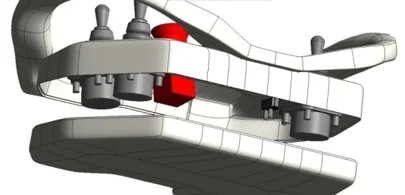

PARTS SPECIFICATIONS AND EXPLODED VIEW

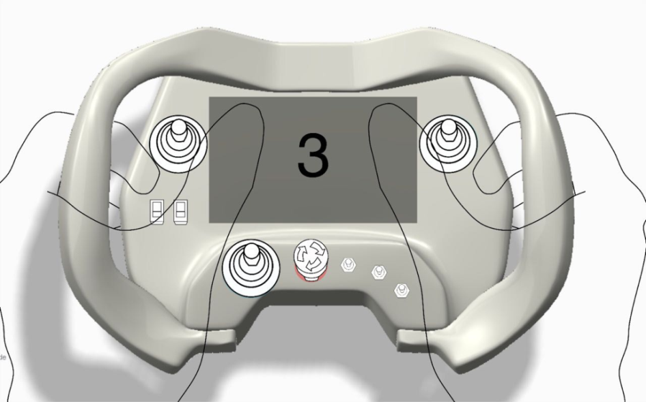

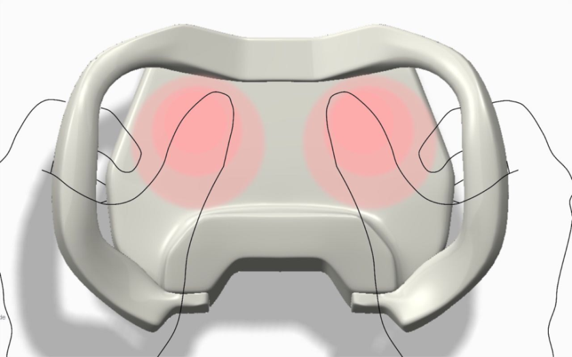

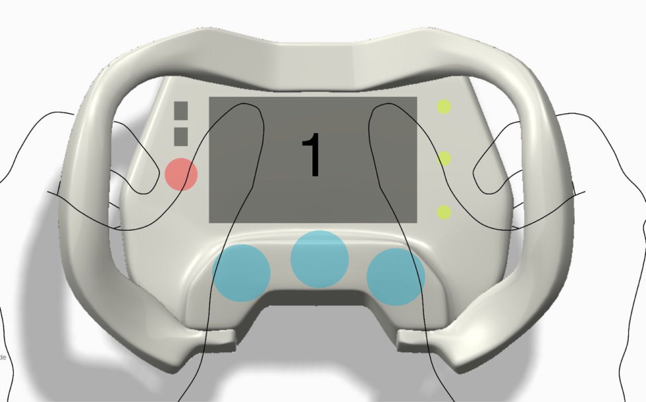

ERGONOMIC HOLDING, GRIP & REACH-CLEARANCE TESING

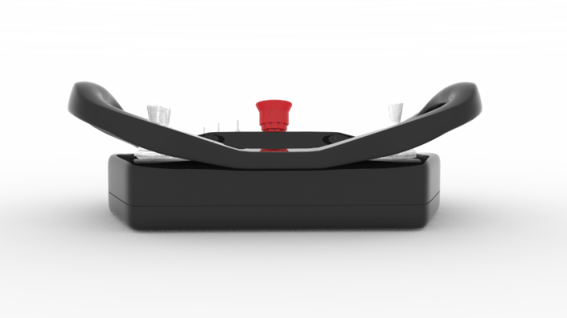

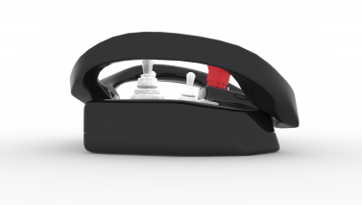

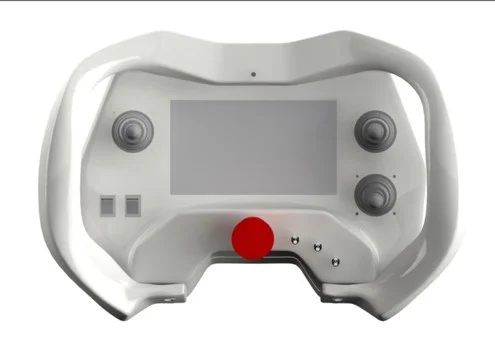

FINAL REMOTE RENDERS

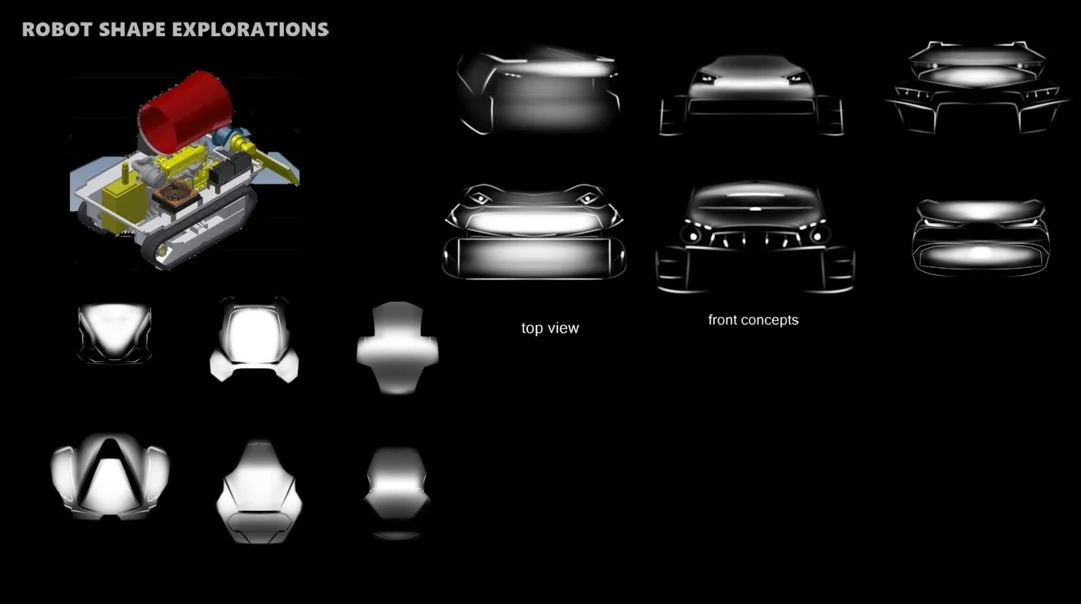

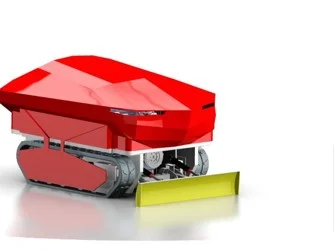

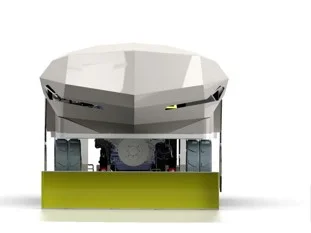

ROBOT STYLING
